Garmin GT34UHD-TH Ultra High-Definition Thru-hull Transducer
Model: 010-12776-10Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element - with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) - and it’s recommended for hulls with up to a 5-degree deadrise angle.
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
SpecificationsFrequency | Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz |
Power | 500 W |
Beamwidth | Ultra High-Defintion ClearVü: 0.74° x 46° Ultra High-Defintion SideVü: 0.44° x 55° |
Maximum depth | Ultra High-Defintion ClearVü: 200 ft. down Ultra High-Defintion SideVü: 125 ft. sides, 250 ft. total |
Features | Depth and Temperature |
Number of pins | 12 |
Cable length | 20 ft |
Supported deadrise/Transom angles | Up to 25° deadrise |

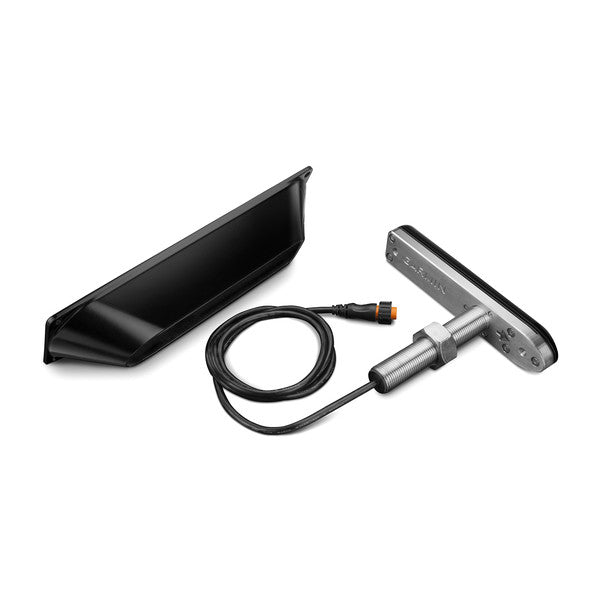

What's in the Box:
- GT34UHD-TH
- Fairing Block
