ReelTech Marine

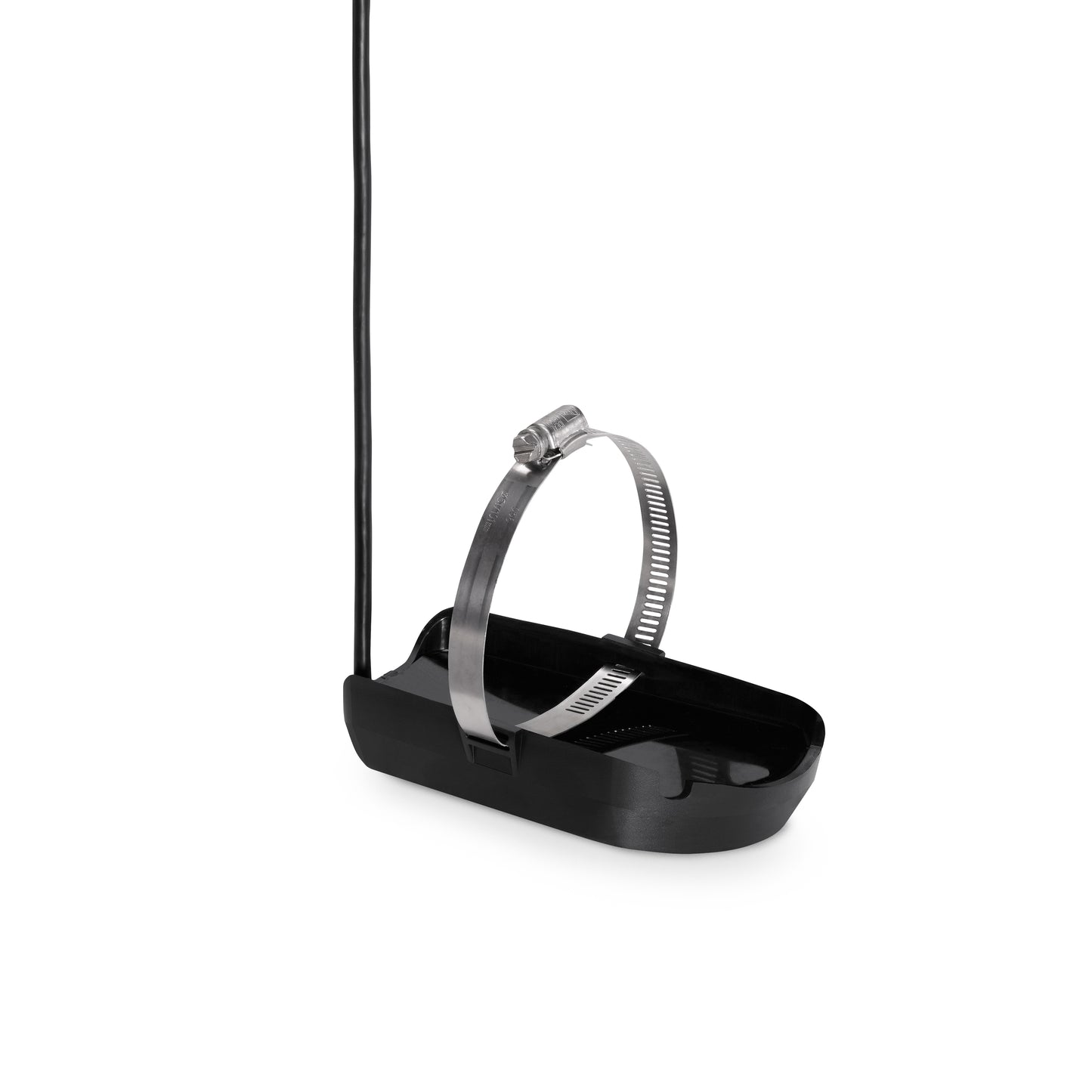

Humminbird XTM-9-HW-MDI-75-T Transducer W/Temp

Humminbird XTM-9-HW-MDI-75-T Transducer W/Temp

Regular price $209.99 USD
Regular price Sale price $209.99 USD
Sale Sold out

Humminbird XTM 9 HW MDI 75 T - HELIX 7/8 MEGA DI, Dual Spectrum CHIRP w/ Temp Trolling Motor Transducer

Model: 710296-1
  • This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G3N.
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m)

MEGA Down Imaging Trolling Motor Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 20’ cable.

Specifications
Mount Type Trolling Motor
Sonar Type MEGA Imaging, Dual Spectrum
Current Models HELIX 7, HELIX 8
